Traction 90A Contractor Reset Battery Support Unit

$1,907.00

Product Code: BSU2-90C

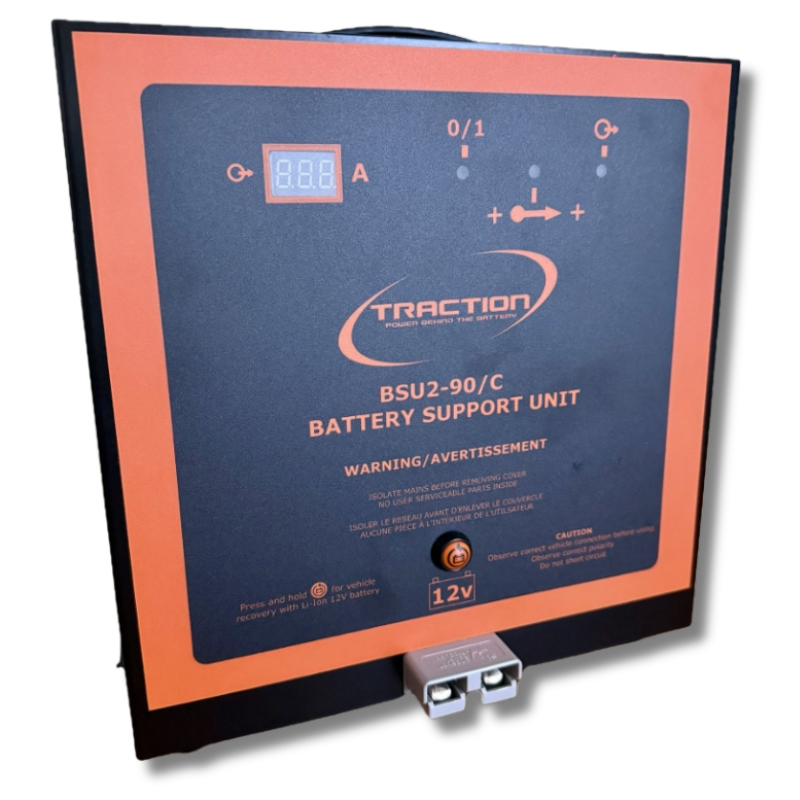

The BSU2-90/C Battery Support Unit is derived from the BSU2-125C (90A) Support Unit, but now with a contactor reset for lithium batteries. BSU2-90/C provides an active stable voltage and up to 90 amps of fully regulated power to prevent loss of charge and damage to the battery. BSU2-90/C can be used with any 12V automotive battery including Lithium, AGM and GEL.

When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.

BSU2-90/C provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.

Product Code: BSU2-90C

The BSU2-90/C Battery Support Unit is derived from the BSU2-125C (90A) Support Unit, but now with a contactor reset for lithium batteries. BSU2-90/C provides an active stable voltage and up to 90 amps of fully regulated power to prevent loss of charge and damage to the battery. BSU2-90/C can be used with any 12V automotive battery including Lithium, AGM and GEL.

When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.

BSU2-90/C provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.

Download Product Spec

  • Contractor reset for lithium batteries.

    Portable or wall mount options available.

    Reverse polarity protection.

    Output current display.

  • Supplied with IEC power lead and 4.7m output leads.

  • Compatible with LiFeP04 with 12V Lithium - All technologies

    Designed for use in the workshop and compatible with our diagnostic trolleys.

  • During diagnostic or programming operations, the vehicle’s systems are operating solely from the battery. Maintaining battery charge during this process is critical.

    The status of BSU2-90/C is indicated simply by three LED’s – POWER, POLARITY, DEMAND. When all 3 are illuminated, BSU2-90/C is supporting the battery.

  • Reset contactors on lithium batteries.

  • INPUT: 90-260v AC

    WEIGHT: 17.6lb

    SIZE: 11.6” x 10” x 5.1”

    OUTPUT: 14v up to 90A
