ASU4 provides an active stable voltage and up to 90 amps of fully regulated power to prevent loss of charge and damage to the battery.
ASU4 can be used with any 12V automotive battery including Lithium, AGM and GEL.
When the battery is charged the ASU is a regulated power supply to sustain accessory loads and offset parasitic drain.
Lead state temperature monitoring ensuring safe and stable output voltage conditions.
Designed for use in the workshop and compatible with our diagnostic trolleys.
This NEW model automatically adjusts current based on battery terminal temperature.
ASU4 SPECIFICATIONS
Input: 90–240VAC
Output: 14V up to 90A continuous
Weight: 18 lbs (8 Kg)
Size: 11.6 x 10 x 5 inches (295 x 255 x 130 mm)
Carton: 12.6 x 9.8 x 9 inches (320 x 250 x 230 mm)
ASU4 provides an active stable voltage and up to 90 amps of fully regulated power to prevent loss of charge and damage to the battery.
ASU4 can be used with any 12V automotive battery including Lithium, AGM and GEL.
When the battery is charged the ASU is a regulated power supply to sustain accessory loads and offset parasitic drain.
Lead state temperature monitoring ensuring safe and stable output voltage conditions.
Designed for use in the workshop and compatible with our diagnostic trolleys.
This NEW model automatically adjusts current based on battery terminal temperature.
ASU4 SPECIFICATIONS
Input: 90–240VAC
Output: 14V up to 90A continuous
Weight: 18 lbs (8 Kg)
Size: 11.6 x 10 x 5 inches (295 x 255 x 130 mm)
Carton: 12.6 x 9.8 x 9 inches (320 x 250 x 230 mm)
Reverse polarity protection.
Output current display.
Temperature monitoring.
Available in Workshop and Showroom formats.
Portable or wall mount options available.

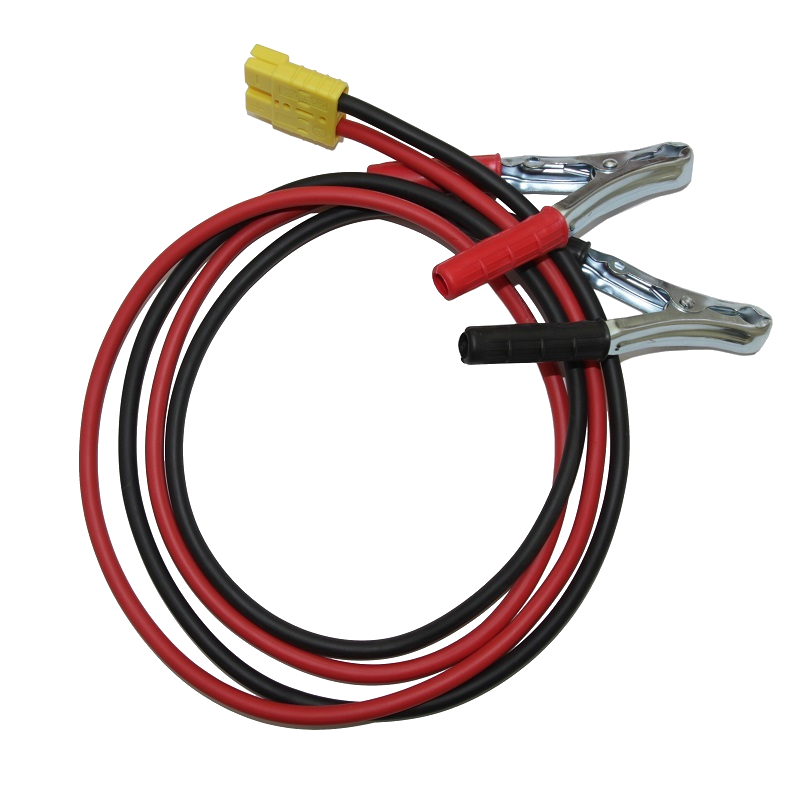

Supplied with IEC power lead and 4.7M output leads.
JLRSST151 APPROVED PRODUCT
