Showroom Support Units vs Battery Support Units: Choosing the Right Power Source for the Right Environment
When it comes to battery support equipment, not every unit is built for the same job. The right choice depends entirely on what the vehicle is doing. If a vehicle is sitting on display in a showroom, it has fundamentally different electrical requirements to a vehicle undergoing diagnostics or programming in the workshop. That's why Showroom Support Units (SSUs) and Workshop Battery Support Units (BSUs) are designed to operate in completely different ways.
The biggest difference is simple.
A Showroom Support Unit only supplies power when it's needed. Once the vehicle is no longer drawing power, the unit shuts down completely. A Battery Support Unit, on the other hand, is designed to remain on continuously. During diagnostics, ECU programming and software updates, even a brief interruption to the power supply can cause communication failures, corrupt programming sessions or loss of vehicle data.
Although both products provide stable, regulated voltage, they perform very different jobs. Understanding those differences ensures you're using the correct equipment for the application while protecting both the vehicle and your workshop.
Different Environments, Different Requirements
A dealership showroom and a workshop may both require battery support equipment, but they present completely different operating conditions.
Inside the workshop, technicians are often carrying out software updates, coding, calibration and diagnostic procedures that can last for extended periods. Throughout these processes, the battery support unit must maintain a continuous regulated voltage without interruption. If power is lost, communication between the vehicle and diagnostic equipment can fail, potentially requiring procedures to be restarted or, in the worst-case scenario, risking corruption of electronic control modules.
A showroom vehicle presents a very different challenge.
Most of the time, the vehicle is parked with the ignition off. However, every time a prospective customer opens a door, switches on the ignition, explores the infotainment system or adjusts vehicle settings, electrical demand increases. The support unit only needs to maintain battery voltage during these short periods before safely shutting itself down again.

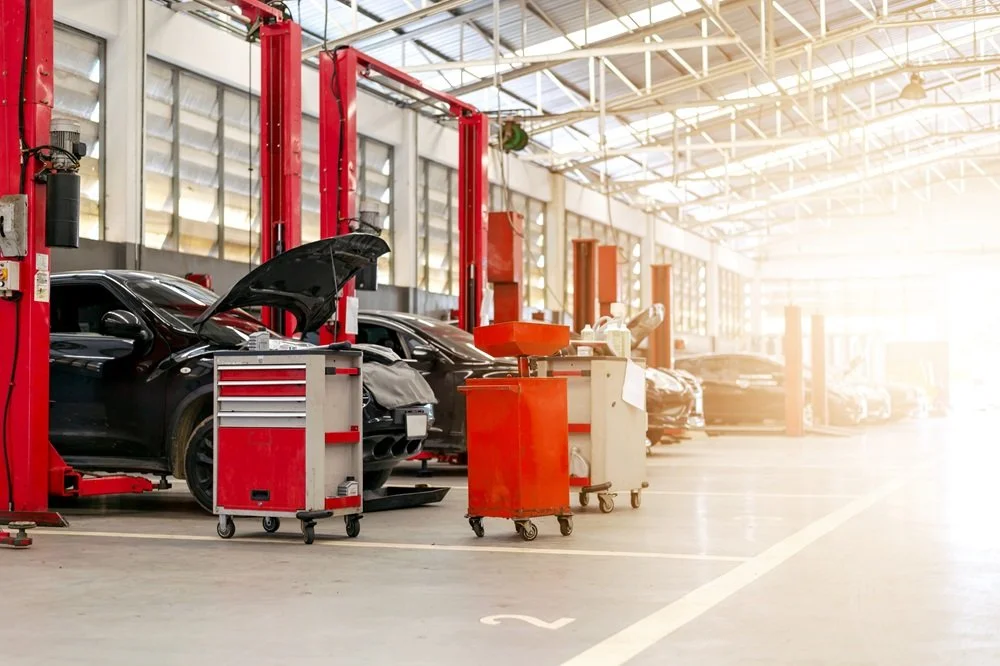

How a Workshop Battery Support Unit Operates
A Workshop Battery Support Unit is engineered to provide a continuous regulated power supply from the moment it is connected until the technician disconnects it.
Unlike a showroom unit, the BSU never switches itself off simply because the vehicle's electrical demand changes. Whether the ignition is off, in accessory mode or fully switched on, the unit continues supplying stable voltage throughout the entire repair or programming process.
This continuous operation is essential during:
ECU programming
Software updates
Vehicle diagnostics
Coding and calibration
Battery replacement procedures
Extended workshop servicing
Modern vehicles can draw rapidly changing current during these procedures. A quality BSU reacts instantly to changing electrical loads while maintaining a constant output voltage.
More importantly, it cannot stop supplying power. Even a brief interruption may cause programming failures, communication errors between diagnostic equipment and the vehicle or the loss of data during software installation. This is why continuous operation is a fundamental requirement of every workshop battery support unit.
For workshop applications, uninterrupted power isn't simply beneficial, it's critical.
How a Showroom Support Unit Operates
A Showroom Support Unit follows a completely different operating philosophy. Rather than remaining active continuously, the SSU monitors the vehicle and only activates when it detects a Key On, Engine Off (KOEO) condition.
When someone enters the vehicle, opens the doors or switches on the ignition without starting the engine, the vehicle's electrical systems begin drawing current from the battery. At this point, the Showroom Support Unit automatically provides regulated voltage to support the battery and prevent unnecessary discharge. Once customer interaction ends and the electrical demand disappears, the unit shuts down completely.
This isn't simply an energy-saving feature, it's a fundamental part of the product's design.
Because showroom vehicles spend much of their time unattended, there is no requirement for a support unit to operate continuously. Automatically shutting down when no longer required reduces unnecessary operating time, minimises wear on the equipment and removes the need for the unit to remain energised when there is no electrical demand.
This intelligent operation also helps:
Maintain battery charge during customer demonstrations
Reduce unnecessary equipment operating time
Extend battery life
Keep display vehicles ready for test drives
Eliminate continuous operation when support isn't required
Why Continuous Output Isn't Suitable for Every Application
It may seem logical to use a workshop support unit in every situation, but continuous power delivery isn't always appropriate.
In a showroom environment, vehicles can remain stationary for days or even weeks while being viewed by multiple customers each day. Operating a continuously active battery support unit would provide no additional benefit during long periods when the vehicle is inactive. Instead, it would increase equipment operating time unnecessarily.
By activating only during KOEO conditions, showroom support units deliver power precisely when vehicle electrical demand increases. This approach provides effective battery maintenance while improving overall operational efficiency.
Voltage Stability Remains Critical
Although their activation methods differ, both systems share one essential objective: delivering stable, regulated voltage. Modern vehicles contain dozens of interconnected control modules that rely on consistent electrical supply.
Voltage fluctuations can result in:
Interrupted software updates
Diagnostic communication errors
Battery degradation
Electronic system instability
Reduced battery performance
Whether supporting a vehicle during programming or maintaining a showroom display model, regulated voltage remains fundamental to reliable vehicle operation.
Selecting the Right Equipment
Choosing between a Showroom Support Unit and a Workshop Battery Support Unit should always be based on vehicle usage.
If the primary requirement is supporting diagnostics, programming and servicing, a Workshop Battery Support Unit provides the continuous regulated power technicians require.
If the objective is maintaining display vehicles while preventing unnecessary battery discharge during customer interaction, a Showroom Support Unit offers a more intelligent, application-specific solution through its automatic Key In, Engine Off activation.
For dealerships operating both service departments and vehicle showrooms, each unit performs a distinct role within the business.
